SEER: 17; SEER Non-Ducted: 17; EER Non-Ducted: 11; HSPF Non-Ducted: 9; BtuH Cooling: 8,800; Min. Cooling Capacity BtuH: 4,400; Max. Cooling Capacity BtuH: 10,200; BtuH Heating: 9,400; Min. Heating Capacity BtuH: 4,400; Max. Heating Capacity BtuH: 13,600; CFM High: 900; Volts: 208/230; Amps Cooling: 6.95; Max. Fuse Size: 15; Cooling Temperature Range Deg.F: 50 - 115; Heating Temperature Range Deg.F: 5 - 65; Sound Pressure Cooling dBA: 46; Sound Pressure Heating dBA: 48; Liquid Conn.: 1/4"; Suction Fitting: 3/8"; Min. Total Pipe Length: 10; Max. Total Pipe Length: 65; Min. Each Pipe Length: 10; Max. Each Pipe Length: 65; Refrigerant: R-410A; Width: 25-15/16"; Height: 21-5/8"; Depth: 10-3/4"; Wt. Lbs.: 53; Min. # of Connectable Indoor Units: 1; Max. # of Connectable Indoor Units: 1; Min. Connectable Capacity: 9,000; Max. Connectable Capacity: 9,000; Nom. Capacity: 9,000;
Order #: B60-444
Internal Product ID:
Mfg. #: RXB09AXVJU
Brand: Daikin
Box Qty:
| Amps Cooling | 6.95 |
|---|---|
| BtuH Cooling | 8,800 |
| BtuH Heating | 9,400 |
| CFM High | 900 |
| Cooling Temperature Range °F | 50 - 115 |

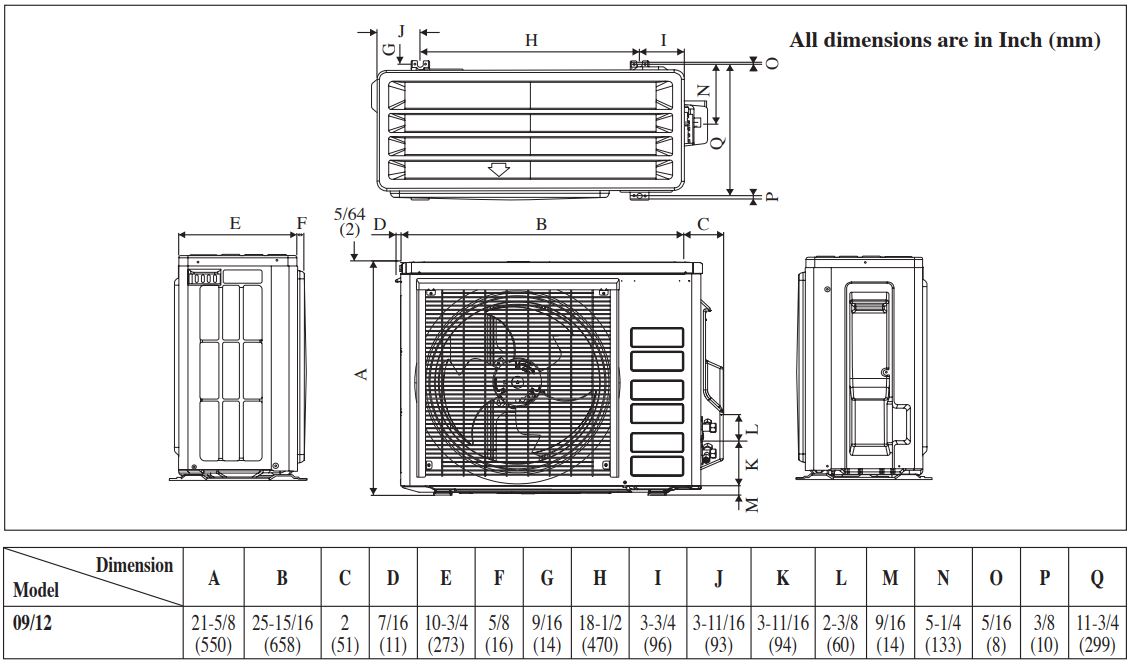

| Depth | 10-3/4" |
| EER Non-Ducted | 11 |
| HSPF Non-Ducted | 9 |
| Heating Temperature Range °F | 5 - 65 |
| Height | 21-5/8" |
| Liquid Conn. | 1/4" |
| Max. # of Connectable Indoor Units | 1 |
| Max. Connectable Capacity | 9,000 |
| Max. Cooling Capacity BtuH | 10,200 |
| Max. Each Pipe Length | 65.00 |
| Max. Fuse Size | 15 |
| Max. Heating Capacity BtuH | 13,600 |
| Max. Total Pipe Length | 65.00 |
| Min. # of Connectable Indoor Units | 1 |
| Min. Connectable Capacity | 9,000 |
| Min. Cooling Capacity BtuH | 4,400 |
| Min. Each Pipe Length | 10.00 |
| Min. Heating Capacity BtuH | 4,400 |
| Min. Total Pipe Length | 10.00 |
| Nom. Capacity | 9,000 |
| Refrigerant | R-410A |
| SEER | 17 |
| SEER Non-Ducted | 17 |
| Sound Pressure Cooling dBA | 46 |
| Sound Pressure Heating dBA | 48 |
| Suction Fitting | 3/8" |
| System # | 09AXVJU |
| System Flex | N |
| Unit Type | Outdoor |
| Volts | 208/230 |
| Width | 25-15/16" |
| Wt. Lbs. | 53 |
| Zone Type | Single-Zone |
| Shipping Weight | 60.00 |
| Shipping Width | 30.50 |
| Shipping Length | 14.00 |
| Shipping Height | 24.00 |
| Harmonize Code | 8415.90.8085 |
|---|---|
| Country of Origin | MALAYSIA |
