SEER: 17; SEER Non-Ducted: 17; EER Non-Ducted: 10.5; HSPF Non-Ducted: 9; BtuH Cooling: 18,000; Min. Cooling Capacity BtuH: 4,300; Max. Cooling Capacity BtuH: 21,200; BtuH Heating: 17,900; Min. Heating Capacity BtuH: 4,000; Max. Heating Capacity BtuH: 22,500; CFM High: 1,690; Volts: 208/230; Amps Cooling: 16.2; Max. Fuse Size: 20; Cooling Temperature Range Deg.F: 50 - 115; Heating Temperature Range Deg.F: 5 - 65; Sound Pressure Cooling dBA: 54; Sound Pressure Heating dBA: 54; Liquid Conn.: 1/4"; Suction Fitting: 1/2"; Min. Total Pipe Length: 10; Max. Total Pipe Length: 98; Min. Each Pipe Length: 10; Max. Each Pipe Length: 98; Refrigerant: R-410A; Width: 33-11/16"; Height: 25-11/16"; Depth: 12-15/16"; Wt. Lbs.: 82; Min. # of Connectable Indoor Units: 1; Max. # of Connectable Indoor Units: 1; Min. Connectable Capacity: 18,000; Max. Connectable Capacity: 18,000; Nom. Capacity: 18,000;
Order #: B60-446
Internal Product ID:
Mfg. #: RXB18AXVJU
Brand: Daikin
Box Qty:
| Amps Cooling | 16.2 |
|---|---|
| BtuH Cooling | 18,000 |
| BtuH Heating | 17,900 |
| CFM High | 1,690 |
| Cooling Temperature Range °F | 50 - 115 |

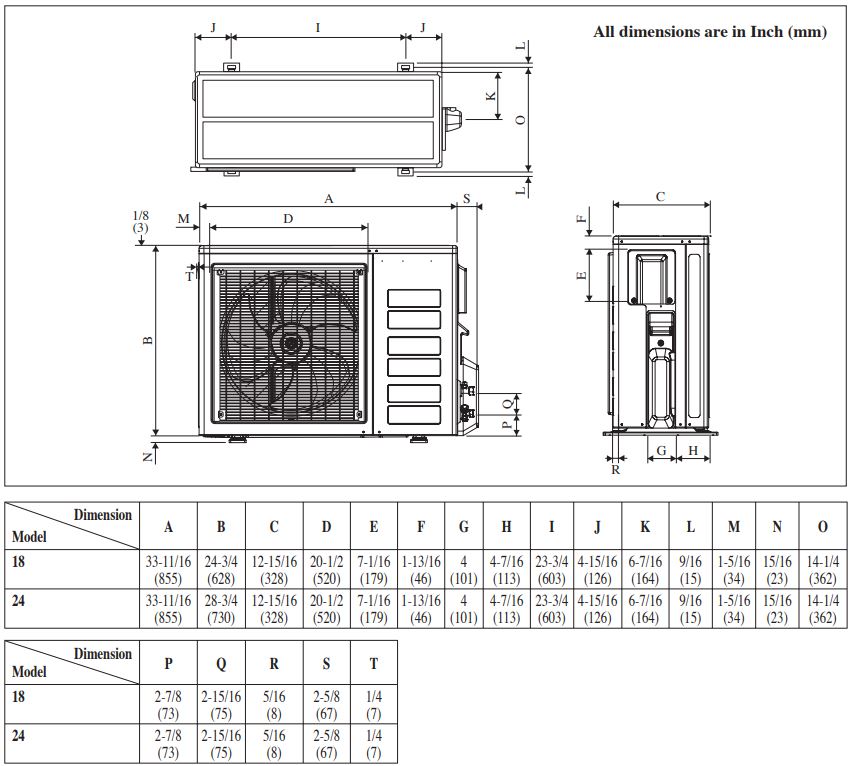

| Depth | 12-15/16" |
| EER Non-Ducted | 10.5 |
| HSPF Non-Ducted | 9 |
| Heating Temperature Range °F | 5 - 65 |
| Height | 25-11/16" |
| Liquid Conn. | 1/4" |
| Max. # of Connectable Indoor Units | 1 |
| Max. Connectable Capacity | 18,000 |
| Max. Cooling Capacity BtuH | 21,200 |
| Max. Each Pipe Length | 98.00 |
| Max. Fuse Size | 20 |
| Max. Heating Capacity BtuH | 22,500 |
| Max. Total Pipe Length | 98.00 |
| Min. # of Connectable Indoor Units | 1 |
| Min. Connectable Capacity | 18,000 |
| Min. Cooling Capacity BtuH | 4,300 |
| Min. Each Pipe Length | 10.00 |
| Min. Heating Capacity BtuH | 4,000 |
| Min. Total Pipe Length | 10.00 |
| Nom. Capacity | 18,000 |
| Refrigerant | R-410A |
| SEER | 17 |
| SEER Non-Ducted | 17 |
| Sound Pressure Cooling dBA | 54 |
| Sound Pressure Heating dBA | 54 |
| Suction Fitting | 1/2" |
| System # | 18AXVJU |
| System Flex | N |
| Unit Type | Outdoor |
| Volts | 208/230 |
| Width | 33-11/16" |
| Wt. Lbs. | 82 |
| Zone Type | Single-Zone |
| Shipping Weight | 160.00 |
| Shipping Width | 17.00 |
| Shipping Length | 37.00 |
| Shipping Height | 32.00 |
| Harmonize Code | 8415.90.8085 |
|---|---|
| Country of Origin | MALAYSIA |
