SEER: 20.0; SEER Non-Ducted: 20; SEER Ducted: 18; EER Non-Ducted: 12.5; EER Ducted: 11.7; HSPF Non-Ducted: 12; HSPF Ducted: 10.8; BtuH Cooling: 10,900; Min. Cooling Capacity BtuH: 10,900; Max. Cooling Capacity BtuH: 13,300; BtuH Heating: 13,400; Min. Heating Capacity BtuH: 4,400; Max. Heating Capacity BtuH: 18,800; CFM High: 1,144; Volts: 208/230; Amps Cooling: 13.0; Max. Fuse Size: 15; Cooling Temperature Range Deg.F: 50 - 115; Heating Temperature Range Deg.F: -13 - 65; Sound Pressure Cooling dBA: 50; Sound Pressure Heating dBA: 50; Liquid Conn.: 1/4"; Suction Fitting: 3/8"; Min. Total Pipe Length: 5; Max. Total Pipe Length: 65; Min. Each Pipe Length: 5; Max. Each Pipe Length: 65; Refrigerant: R-410A; Width: 26-9/16"; Height: 21-5/8"; Depth: 11-3/16"; Wt. Lbs.: 70; Min. # of Connectable Indoor Units: 1; Max. # of Connectable Indoor Units: 1; Min. Connectable Capacity: 12,000; Max. Connectable Capacity: 12,000; Nom. Capacity: 12,000;
Order #: B65-647
Internal Product ID:
Mfg. #: RXL12QMVJU9A
Brand: Daikin
Box Qty:
| Amps Cooling | 13.0 |
|---|---|
| BtuH Cooling | 10,900 |
| BtuH Heating | 13,400 |
| CFM High | 1,144 |
| Cooling Temperature Range °F | 50 - 115 |
| Depth | 11-3/16" |
| EER Ducted | 11.7 |
| EER Non-Ducted | 12.5 |
| HSPF Ducted | 10.8 |
| HSPF Non-Ducted | 12 |
| Heating Temperature Range °F | -13 - 65 |
| Height | 21-5/8" |
| Liquid Conn. | 1/4" |
| Max. # of Connectable Indoor Units | 1 |
| Max. Connectable Capacity | 12,000 |
| Max. Cooling Capacity BtuH | 13,300 |
| Max. Each Pipe Length | 65.00 |
| Max. Fuse Size | 15 |
| Max. Heating Capacity BtuH | 18,800 |
| Max. Total Pipe Length | 65.00 |
| Min. # of Connectable Indoor Units | 1 |
| Min. Connectable Capacity | 12,000 |
| Min. Cooling Capacity BtuH | 10,900 |
| Min. Each Pipe Length | 5.00 |
| Min. Heating Capacity BtuH | 4,400 |
| Min. Total Pipe Length | 5.00 |
| Nom. Capacity | 12,000 |
| Refrigerant | R-410A |
| SEER | 20.0 |
| SEER Ducted | 18 |
| SEER Non-Ducted | 20 |
| Sound Pressure Cooling dBA | 50 |
| Sound Pressure Heating dBA | 50 |
| Suction Fitting | 3/8" |
| System # | 12QMVJU9A |
| System Flex | Y |
| Unit Type | Outdoor |
| Volts | 208/230 |
| Width | 26-9/16" |
| Wt. Lbs. | 70 |
| Zone Type | Single-Zone |
| Shipping Weight | 70.00 |
| Shipping Width | 26.56 |
| Shipping Length | 11.19 |
| Shipping Height | 21.63 |
| Harmonize Code | 8415.90.8065 |
|---|---|

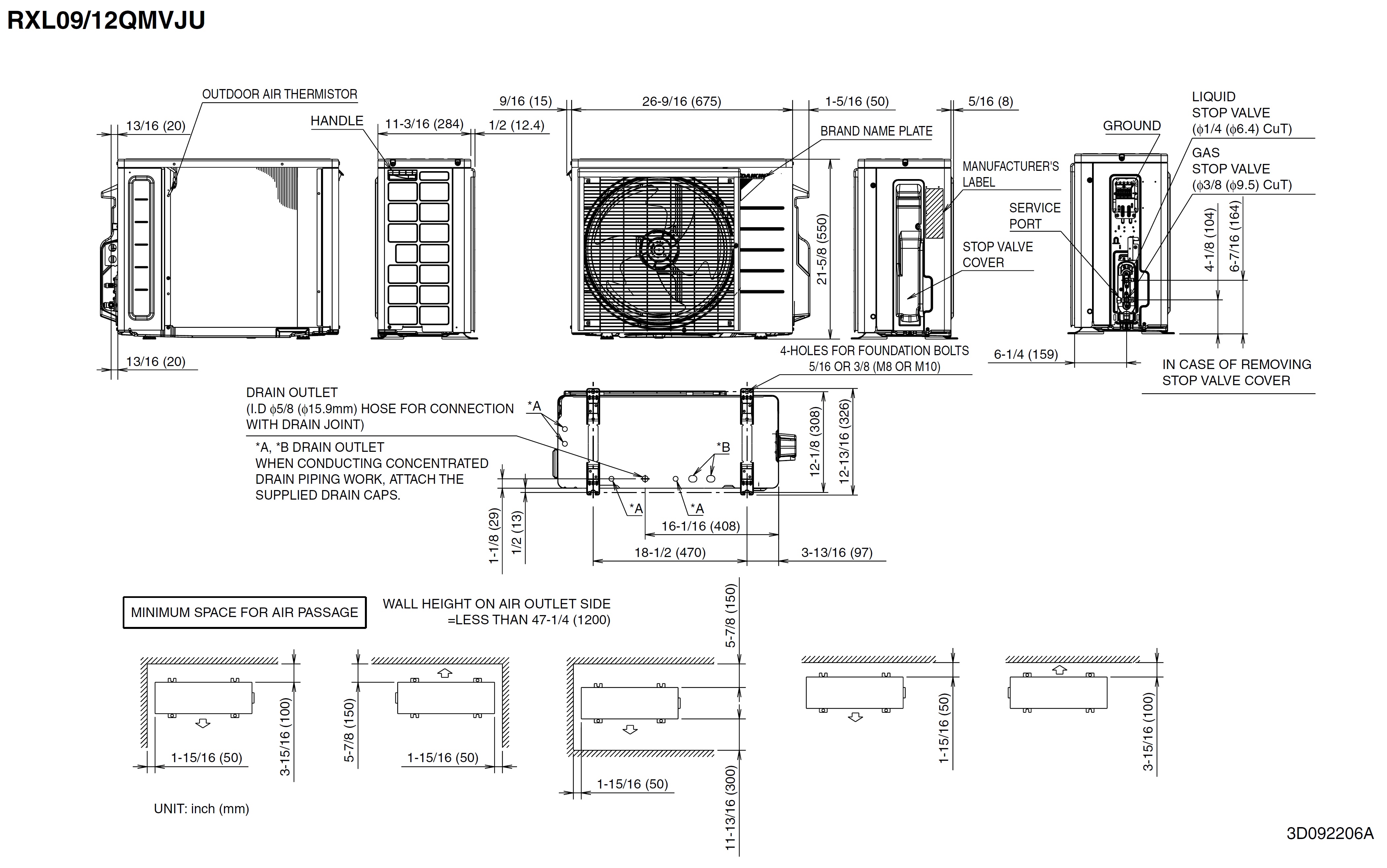

| Note | *For complete specifications and match-ups go to the Mini-Split Selector |
| Country of Origin | THAILAND |
